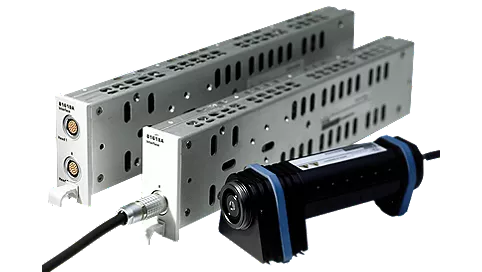

Name：Keysight B1530A

Product Overview The Keysight B1530A Waveform Generator / Fast Measurement Unit Module (WGFMU) is perfect for Ultra-fast IV, pulsed IV and transient IV measurements, which are becoming an increasingly common requirement for the R&D of next generation semiconductor, device and materials. The Keysight B1530A Waveform Generator/Fast Measurement Unit (WGFMU), used with the Keysight B1500A Semiconductor Parameter Analyzer, is a unique measurement module best for those time dependent measurements. They have been typically performed by the combination of pulse generators and oscilloscopes, but the load line effect, which is error by the voltage drop of residual resistance, was the problem for the accurate measurement. The B1530A WGFMU integrates arbitrary waveform generation and simultaneous high-speed measurement capabilities, and Keysight's unique dynamic SMU technology enables accurate and more sensitive measurement than the pulse generator based solution without load line effect. This is very powerful and useful solution to perform leading-edge ultra-fast IV, pulsed IV and transient IV applications such as ultra-fast NBTI and RTN measurement, etc.
