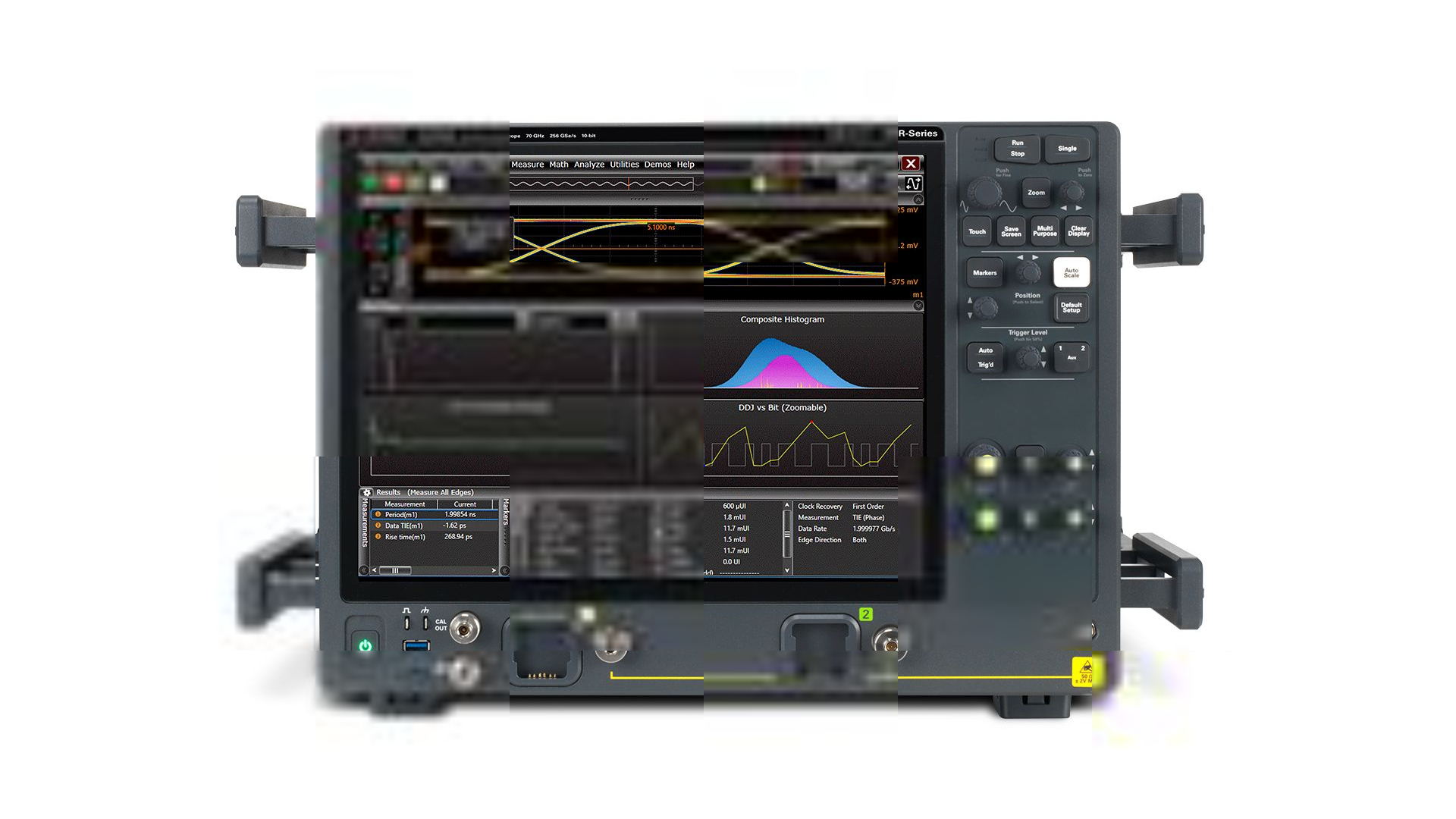

Name：Keysight UXR1102B

Highlights 110 GHz bandwidth 2 channels and upgradable to 4 channels 500 Mpts of memory per channel included and upgradable to 2 Gpts of memory per channel 256 GSa/s sample rate on all channels 160 MHz DDC included and upgradable to 2.16 GHz DDC 160 MHz RTSA included and upgradable to 320 MHz RTSA High-definition 10-bit analog-to-digital converter (ADC) The industry’s lowest noise and jitter measurement floor The industry’s highest ENOB at all supported bandwidth Optional calibration module N2125A for on-site self-calibration High-speed SDA and Clock Recovery included User-defined functions included InfiniiSim Basic included to simply compensate for the channel loss with one block model PrecisionProbe/PrecisionCable included helping quickly characterize the probe or cable loss
